DiSEqC switch 8x1

FOB Reference Price:Get Latest Price
$2.50 - $3.18 / Piece | 500 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
EMC
Model Number:
EMC801A
Housing:
Zinc die-cast housing
Frequency Range:
950-2300 MHz
Insertion Loss:
3 dB
Control mode:
DiSEqC1.1
Isolation:
25 dB
Return Loss:
9 dB
Working Voltage:
12-20 V
LNB power supply max:
500 mA
Water-proof:
Yes
Certificate:
CE RoHS
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month DiSEqC switch 8X1 is available
Packaging & Delivery
Packaging Details
giftbox ,100pcs/carton
Port
shenzhen/zhuhai/guangzhou

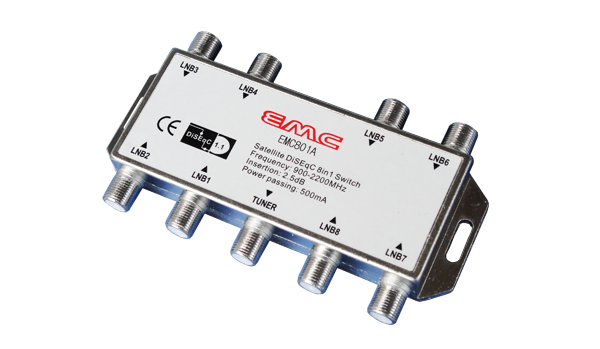

8X1 DiSEqC switch picture



EMC801A







DISEqC switch 8x1



Features:

1. 8 satellite inputs selected by DiSEqC commands.

2. User switching commands:DiSEqC(1.1)

3. Zinc die cast housing

    4. Sealed with silicon glue to proof water



 Specifications:
 Item    Model        EMC801A
 Frequency Range: 900-2300MHz
 Input         8 Sat
 Output 1 User
 loss SAT(user): 2dB
 Return  Loss 9dB
 Isolation SAT/SAT: 28dB
 DC Current Consumption: 10(mA)
 LNB power supply max:  500(mA)
 Normal  Working  Voltage 12-20(V)
 Working temperature:     -40~80(℃)
 Dimension: 120X65X17mm
 Packing: 100PCS/CTN
Carton  size ( L  W  H ): 25.5X19X37CM

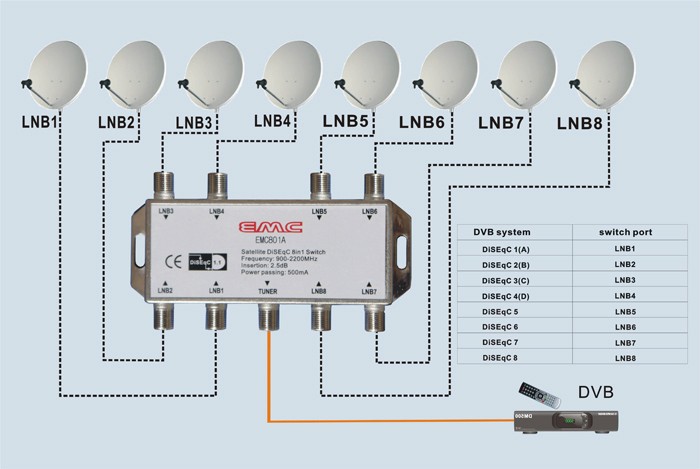

DiSEqC1.1 switch installation drawing



EMC801A equipped pic
