5x16 stand alone satellite multiswitch

FOB Reference Price:Get Latest Price
$29.60 - $39.00 / Piece | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 11 - 1000 >1000
Est. Time(days) 5 25 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
EMC
Model Number:
EMC516P
high sensitivity:
Yes
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month satellite multiswitch is available
Packaging & Delivery
Packaging Details
EMC giftbox /OEM giftbox / whitebox
Port
shenzhen / zhuhai
Lead Time :
Quantity(Pieces) 1 - 10 11 - 1000 >1000
Est. Time(days) 5 25 To be negotiated

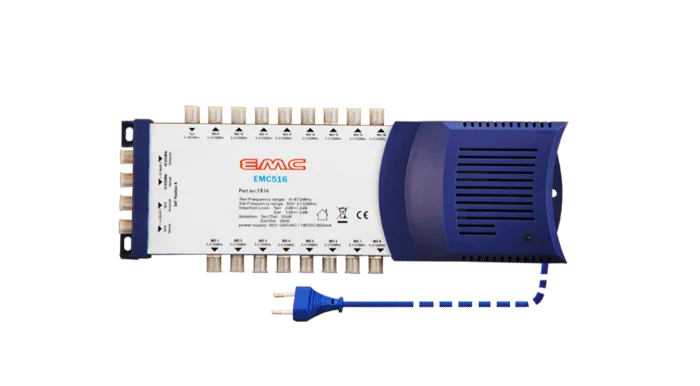

5x16 stand alone satellite multiswitch picture




5x16 stand alone satellite multiswitch



Features:

1.  4 satellite IF input and 1 terrestrial TV input, for 16 users output.
2.  Subscribers output select truck signal controlled by :13V / 18V ,0 / 22K.
3.  Double built-in amplifiers circuit, front-end amplifier circuit is used to compensate the LNB input signals of cable.
     After end amplifier circuit is used to compensate the users signal cable.
4.  Built-in AC90V ~ 265 V switching power supply is a professional design. For the professional test report, this
     multiswitch won’t be burned or broken even by more than 50 ℃ of daily temperature in summer or under higher
     than unstable voltage on about 250 V .
5Our products have the environmental tinplate shell and unique luxury plastic frame.



Parameter ConditionSpecification
 Frequency range Sat. in 950~2150 MHz
 Terr.in 5~872 MHz
 User outputs 5~2150 MHz
  Input  ports  4 Sat+1 Terr
 Output  ports  16 user
 User to control  13/18V,0K / 22kHz

 Insertion loss

 Sat-user  +6 dB  gain
 Terr-user  +1 dB  gain

 Inputs isolation-user

 Sat / Terr 30 dB
 low/high bands 28 dB
 V / H   28 dB
 User Max Output Level Sat 100 dBµV
 Terr 89 dBµV
 DC Current Consumption  90 mA+LNB
 Temperature range  -40~+80°c
 Dimension  335×130×75 mm
 Packing  10 PCS/CTN
 Carton size  ( L W  H )  31.5X33X43 CM
